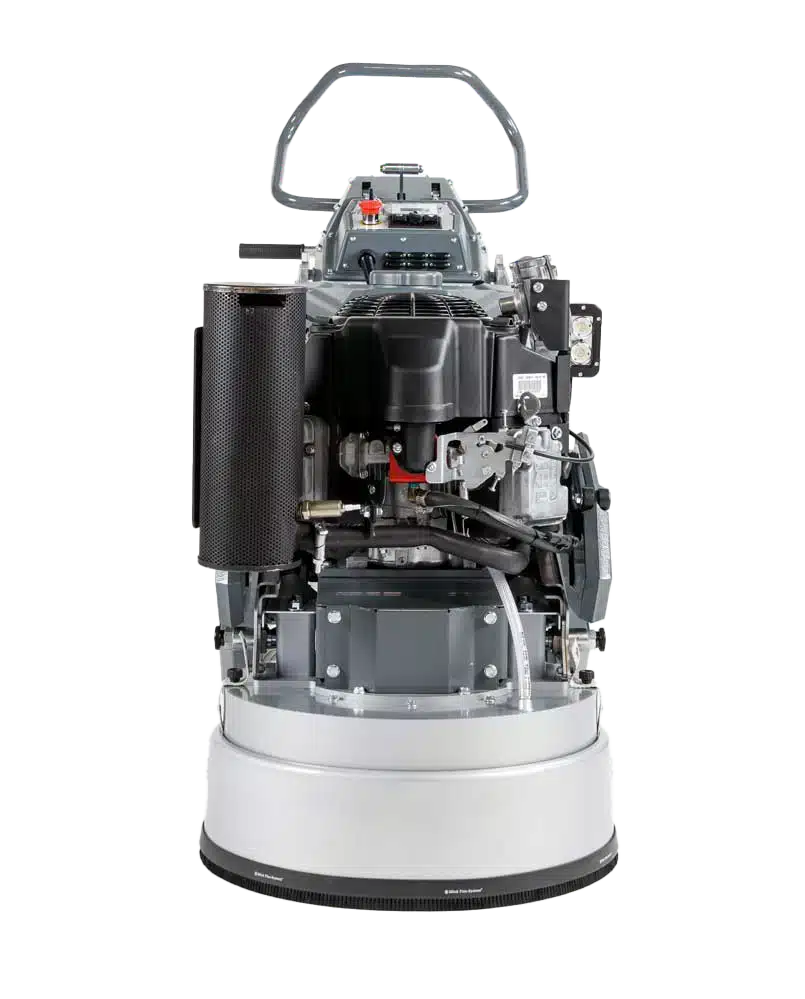

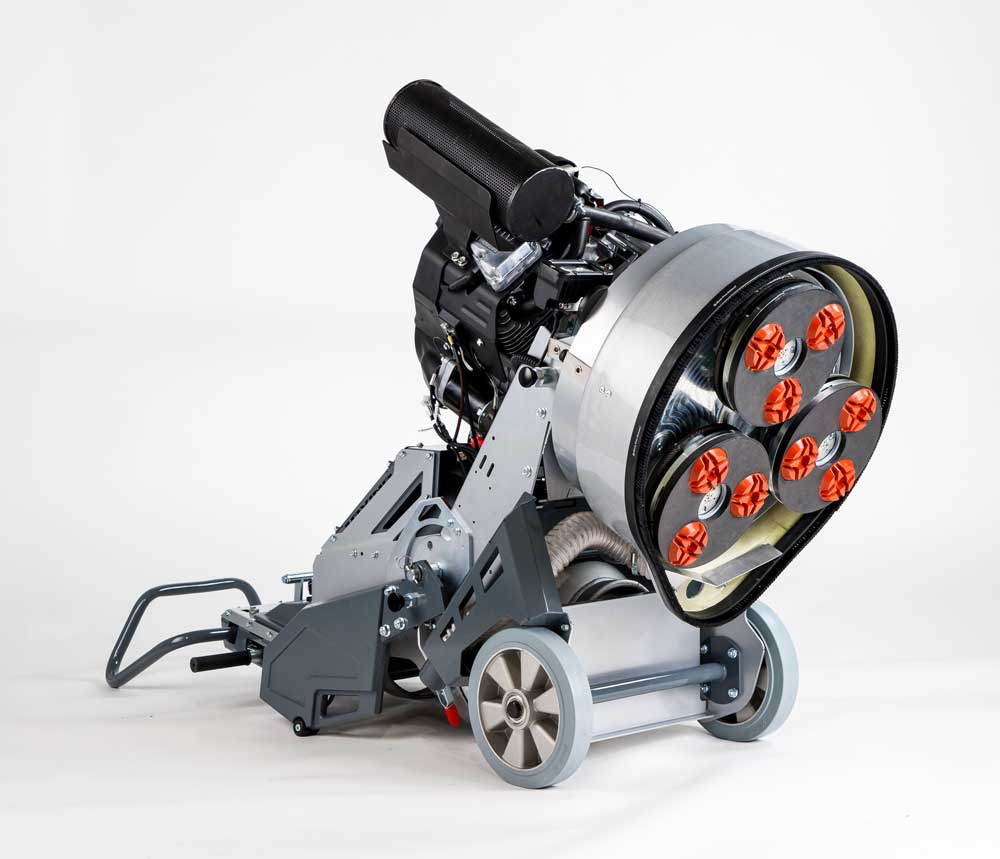

L20GS7 Propane Grinder

L20GS7 Propane Grinder

SKU L20GS7 Categories , Brand:
Grinder Series: S7

Grinder Type: Planetary

Engine: Kawasaki FS481V, 603 cc (18 hp / 13 kW)

Engine RPM: 2000-3600

Weight of Machine: 573 lbs

Grinding Pressure: 286-363 lbs

Tool Holder Diameter: 3 x 9 in

Head Rotation: Counter-clockwise / left rotation

Working Width: 20 in

Propane Tank Capacity: 20 lbs
Water Tank Capacity: 2.1 gal

About

L20GS7 Propane Grinder

20″ Propane Grinder L20GS7

The all-new 20-inch LAVINA S7 propane Grinder is the latest addition to the Lavina S7 lineup. It combines the compact 20-inch footprint with the new S7 features and upgrades to deliver superior performance.

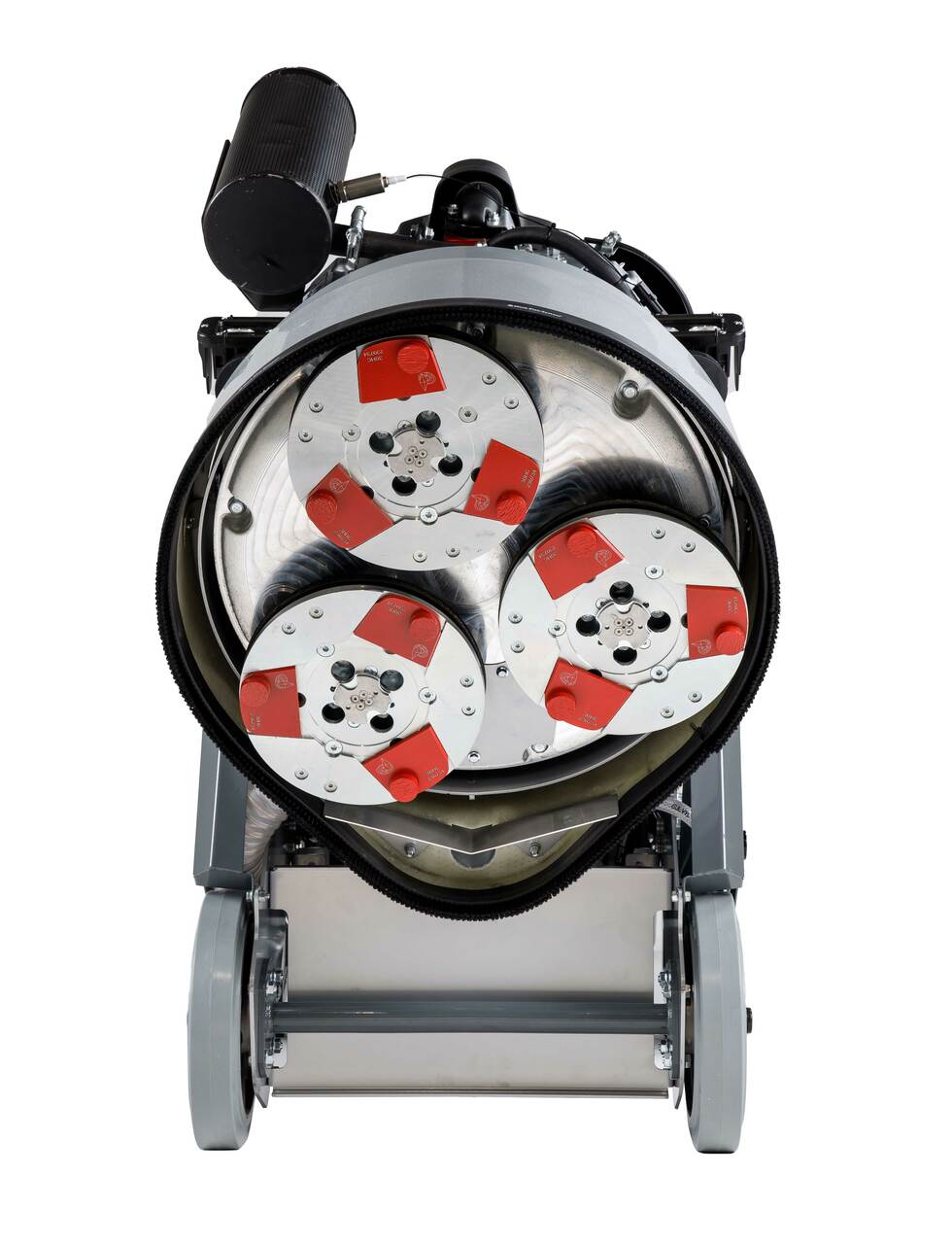

NEW SEALED & DUST-PROOF GRINDING HEAD

  • Longer service life and less maintenance.
  • Completely redesigned chain-driven planetary drive
  • New stronger timing belt
  • Upgraded shafts, seals and bearings
  • New lighter timing pulleys for better power transmission
  • New 2-piece aluminum main belt housing with belt inspection cover

NEW FRAME DESIGN

  • Better control, easier tool changes, and less vibrations.
  • New weights for faster position change
  • Redesigned frame allowing easier tool changes
  • Ergonomic handle design for faster adjustability and more positions
  • Rubber bushing used at head attachment points for less vibration for user
